Medistrom Pilot 24 Lite CPAP Battery: The In-Depth Review

The Engineering Difference: Why 24V-Native Matters

Most general-purpose portable power stations run their AC outlets through a central inverter: battery DC gets converted up to 120V AC, and then the CPAP’s own power supply converts that back down to 24V DC to actually run the machine. Every conversion step loses some energy as heat — this is basic electrical engineering, not a Medistrom-specific claim, and it’s the reason a CPAP plugged into a general power station’s AC outlet typically gets less real runtime per watt-hour than the same battery capacity would suggest on paper.

The Pilot-24 Lite skips one of those conversions entirely: it outputs regulated 24V DC directly, matching what ResMed and several other CPAP manufacturers’ machines actually run on, rather than routing through an AC step first. This is the core reason a purpose-built 24V battery gets more usable runtime out of a given Wh capacity than an equivalent-sized general power station running the same CPAP through its AC inverter — I can’t give you a precise universal loss percentage, since that depends on the specific inverter and adapter involved, but the direction of the effect is well-established electrical engineering, not a marketing claim unique to this product.

Full Verified Specifications

Cross-checked against Medistrom’s official product manual and consistent across current retailer listings:

Spec	Detail
Capacity	95Wh
Cell type	Industrial-grade genuine LG lithium-ion
Rated input	24V, 60W normal / 90W max
Rated output	DC 24V, 3.75A; USB 5V, 2.5A
Weight	1.3 lbs (560g)
Dimensions	6.7″ x 3.5″ x 0.8″
Case	Aluminum
Charge cycle life	500+ full cycles
Recharge time	2–3 hours via the AirSense 10’s own AC adapter or the optional Medistrom 90W adapter (SKU P24ACCACA); 7–9 hours via the ResMed AirMini’s weaker AC adapter
Runtime	8–16 hours, pressure-dependent, humidifier and heated tube disabled
Warranty	1 year, per Medistrom’s current authorized distributors (cpap.com, Vitality Medical, DME Supply USA, and others)
Air travel status	Under the FAA’s 100Wh carry-on threshold — no airline approval required

A correction worth flagging directly: older sources, including a source I relied on in an earlier draft of CPAP battery coverage on this site, list a 90-day warranty. A check of Medistrom’s current authorized retail network turned up 1 year as the consistent figure across the large majority of current listings. A listing showing 90 days may be outdated rather than reflecting current terms — worth confirming with the seller directly when the warranty period matters to your decision.

Compatibility: What Works, What Needs a Kit, and What Doesn’t Work at All

Works out of the box (included cables in the standard package): ResMed AirSense 10, ResMed AirMini.

Works with a separately-sold cable kit:

• ResMed AirSense 11 and AirCurve 11 (non-ASV) — kit SKU P24R11PLK
• ResMed S9 — kit SKU P24R09PLK
• Philips DreamStation Go and 3B Medical Luna — kit SKU P24PDGPLK
• Apex iCH — kit SKU P24AMIPLK

Does not work: ResMed AirCurve 10 ASV and AirCurve 11 ASV. Adaptive servo-ventilators adjust pressure dynamically breath-to-breath and draw meaningfully more power than standard CPAP/APAP units. A verified buyer reported running two of these batteries in series to try to power an AirCurve ASV and getting roughly two hours of runtime before failure, calling it “an expensive mistake.” An ASV machine means looking for a battery built for higher-draw BiPAP/ASV devices instead — this one isn’t rated for that load.

One more distinction worth being precise about: standard DreamStation 2 is not on Medistrom’s published compatibility list — the supported Philips product is DreamStation Go, a different, travel-focused product line. This isn’t a voltage mismatch, for what it’s worth — DreamStation 2 actually runs on 24V DC (a 65W power brick), the same voltage family as the Pilot-24 Lite’s output, unlike the original DreamStation, which is 12V. But “same voltage” doesn’t mean “supported”: Medistrom hasn’t published a cable kit or compatibility confirmation for DreamStation 2 specifically, so don’t assume it’ll work just because the electrical numbers happen to line up. A need to bridge both 12V and 24V CPAP machines is exactly what the Medistrom Pilot Flex (98Wh, auto-detecting 12V/24V, covered below) is built for.

Real Runtime: The Humidifier Problem

The “1–2 nights” and “up to 16 hours” figures are real, but they apply only with humidifier, heated tubing, and exhalation pressure relief all disabled, at 10 cmH2O or lower. That’s an achievable setup, not a marketing trick, but it’s also not how most people run their CPAP every night.

With humidification and heat running, expect closer to a single night’s coverage, sometimes noticeably less — heated humidifier plates and heated tubing draw substantially more power than the blower motor alone. One verified buyer reported finishing a full night with roughly 50% of the battery remaining on an unheated setup, which is consistent with the upper half of Medistrom’s stated range. Comfort-level humidification means planning around 8 hours or less rather than the 16-hour headline figure, and a Heat Moisture Exchanger (HME) cartridge is a waterless way to retain some humidity without drawing down the battery.

Charging Notes, Including the AirMini UPS Catch

The Pilot-24 Lite doesn’t include its own AC wall charger by default — per Medistrom’s manual, it’s designed to charge from a CPAP machine’s existing AC adapter via the included cables, or from the optional dedicated Medistrom 90W adapter (P24ACCACA) if you want faster, guaranteed-compatible charging without relying on a machine’s adapter.

This creates one specific catch worth knowing if you use an AirMini: the AirMini’s own AC adapter outputs only 20W, meaningfully less than what’s needed to run the AirMini and keep the Pilot-24 Lite topped off simultaneously in a permanent backup configuration. For that use case specifically, Medistrom’s own documentation recommends charging via the AirSense 10’s adapter or the dedicated 90W Medistrom adapter instead of the AirMini’s stock charger.

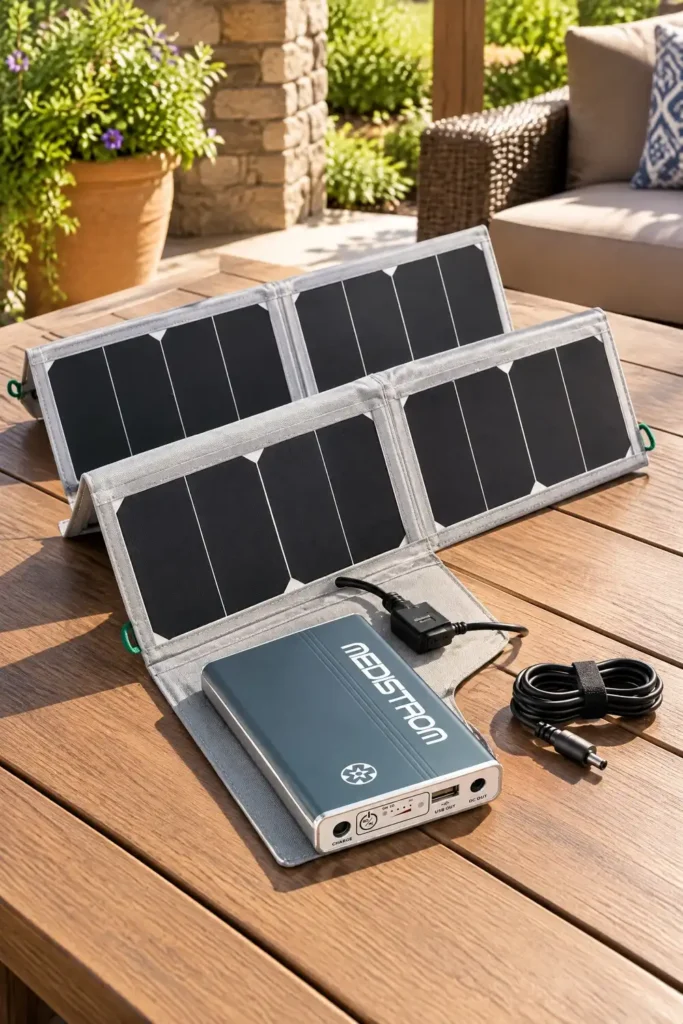

Solar charging correction: Medistrom sells a 50W solar panel (SKU P99ACCS50) for this battery. Some sources circulate a 3–4 hour full-charge claim for this panel — that figure doesn’t match what I found. Multiple independent retailers consistently cite 7 to 9 hours in direct sunlight, which is the number to plan around. Also worth noting directly from the panel’s own documentation: don’t connect the battery to a CPAP while it’s charging via solar — it’s designed for charging only, not pass-through operation in that configuration.

Pros and Cons, With the Fix

Pros: Purpose-built for CPAP’s actual 24V DC draw rather than an inverter approximation, very light at 1.3 lbs, automatic UPS-style switchover with no manual step during outages, USB port doubles as a phone/tablet charger, built-in LED flashlight.

Cons, with the fix: Does not support AirCurve ASV — confirm your exact model, not just “ResMed,” before buying. No AC wall charger included by default — budget for the optional 90W adapter if you don’t already own a compatible CPAP AC adapter or want faster charging. AirSense 11, S9, DreamStation Go, and Apex iCH all need a separate cable kit — check which one matches your machine before ordering. Real-world runtime with humidifier and heat enabled is meaningfully below the 16-hour headline figure.

HSA/FSA Eligibility and Documentation

A CPAP battery backup purchased for a physician-prescribed sleep therapy device generally qualifies as an operating or maintenance cost under IRS Publication 502. For reimbursement, keep: an itemized invoice showing the product name, a copy of your CPAP prescription, and — particularly useful if a claim is questioned — a Letter of Medical Necessity from your prescribing physician stating that backup power is needed to maintain continuous therapy during outages. I walk through this documentation trail in more depth in my HSA eligible portable power station guide.

Storage and Long-Term Care

Lithium-ion cells degrade faster when stored fully charged or fully depleted for extended periods. For seasonal storage rather than regular use, charge the Pilot-24 Lite to roughly 50–80% first rather than topping it off to 100% or letting it sit empty, and check on it every few months rather than leaving it untouched for a year or more. This is standard lithium-ion battery practice, not specific to this product, but it’s worth following given how this battery is often bought for occasional travel or emergency use rather than daily cycling.

How It Compares to Other Purpose-Built CPAP Batteries

Two real alternatives worth knowing about, both verified against their own manufacturer/retailer specs rather than a generic comparison:

	Medistrom Pilot-24 Lite	Medistrom Pilot Flex	Zopec Explore Mini
Capacity	95Wh	98Wh	~99Wh
Weight	1.3 lbs	1.2 lbs	~1.0–1.2 lbs
Voltage support	24V only	12V and 24V, auto-detecting	24V (check specific model cables)
Cables included	AirSense 10, AirMini	AirMini	AirMini, AirSense 10, AirSense 11
Recharge time	2–3 hours (own charger)	2–3 hours AC; 4–6 hours via 45W USB-C	~1.5 hours
Warranty	1 year	1 year	18 months

When Pilot Flex is the better fit: if you need one battery to cover both a 12V machine (like the original DreamStation) and a 24V machine (like a ResMed), rather than owning separate batteries for each.

When Zopec Explore Mini is the better fit: if AirSense 11 compatibility out of the box (no separate cable kit purchase) or faster recharge time matters more to you than the slightly longer warranty gap.

When the Pilot-24 Lite remains the pick: if you’re specifically on the AirSense 10, AirSense 11, or AirMini ecosystem and don’t need dual-voltage flexibility — it’s the most established of the three with the largest base of verified long-term user reports.

FAQs

Does the Medistrom Pilot-24 Lite work with the ResMed AirCurve ASV?

No. Confirmed by both the device’s design specs and direct buyer experience — the ASV 10 and ASV 11 draw more power than this battery is built to sustain.

Can I bring the Pilot-24 Lite on a flight?

Yes, without airline approval — its 95Wh capacity is under the FAA’s 100Wh threshold for carry-on lithium batteries under 49 CFR 175.10(a)(18). Confirm your specific airline’s documentation requirements before flying, since carriers can add their own steps within FAA limits.

What’s the actual warranty on this battery?

1 year, per current authorized Medistrom distributors. Older sources citing 90 days appear to reflect outdated terms — confirm directly with your seller if this matters to your purchase decision.

How long does the solar panel actually take to recharge it?

7 to 9 hours in direct sunlight, per Medistrom’s own retail documentation — not the 3-to-4-hour figure sometimes cited elsewhere.

Do I need a separate cable for my specific CPAP machine?

For anything other than the AirSense 10 or AirMini, yes. AirSense 11/AirCurve 11, S9, DreamStation Go, 3B Medical Luna, and Apex iCH each require their own kit — check the specific SKU that matches your machine before ordering.

Bottom Line

The Medistrom Pilot-24 Lite is a genuinely purpose-built CPAP battery for the machines it supports, with real engineering reasons behind its 24V-native design rather than just marketing language. The two things worth carrying away: it will not power an AirCurve ASV machine no matter how you configure it, and the advertised 16-hour runtime assumes humidifier and heat are off — plan around a single night if you run yours with full comfort features on. And if you’ve seen a 90-day warranty or a 3-to-4-hour solar recharge time cited elsewhere, both check out as outdated or inaccurate against current documentation.

For the broader CPAP power picture, see my CPAP battery backup guide and the medical device power supply pillar guide.
